| Appearance Body | Silver |
|---|---|
| Material | Aluminum Extrusion |
Product Specification
Ordercode | Model SPEC | ||||||||
Model | LED (K) | Body color | Size (mm) | Mass (kg) | Power Consumption | Rated Voltage / Frequency | Waterproof Rating | Color Rendering | |
WLX5-600L | 6500K (Cool White) | Silver | W606 × H83 × D305 | 5.0 | 1.05A 63W | AC 100V ~ 220V 50Hz ~ 60Hz | LED-BAR(IP67) & & SPD(IP66) | Ra 70 +
| |
WLX5-900L | W906 × H83 × D305 | 7.0 | 1.05A 91W | ||||||
WLX5-1200L | W1206 × H83 × D305 | 9.0 | 1.05A 120W | ||||||
Model | WLX5-600L | WLX5-900L | WLX5-1200L |
Power | Meanwell ELG75-C1050 | Meanwell ELG100-C1050 | Meanwell ELG150-C1050 |
Certificate | KC.CE IP67 | ||
Surge Protection | OSRAM SPD 15 P5G2 15kv 15kA IP65 | ||
LED | 18ea*3vf = 54v*1.05A =56.7W | 27ea*3vf = 81v*1.05A =85.0W | 36ea*3vf = 108v*1.05A =113.4W |
RANK, RA | SEOULSEMI X5-M4 6500K(3A) | ||

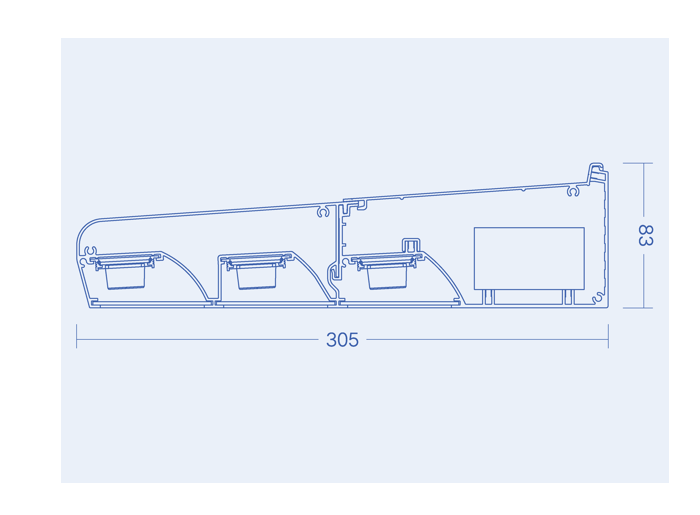

Exterior Drawing

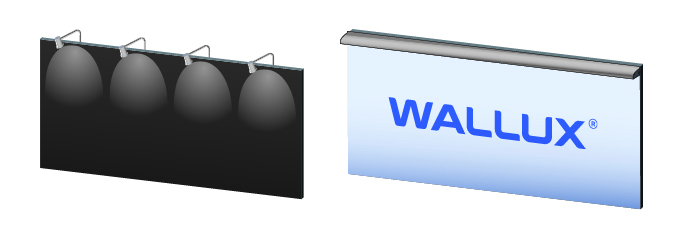

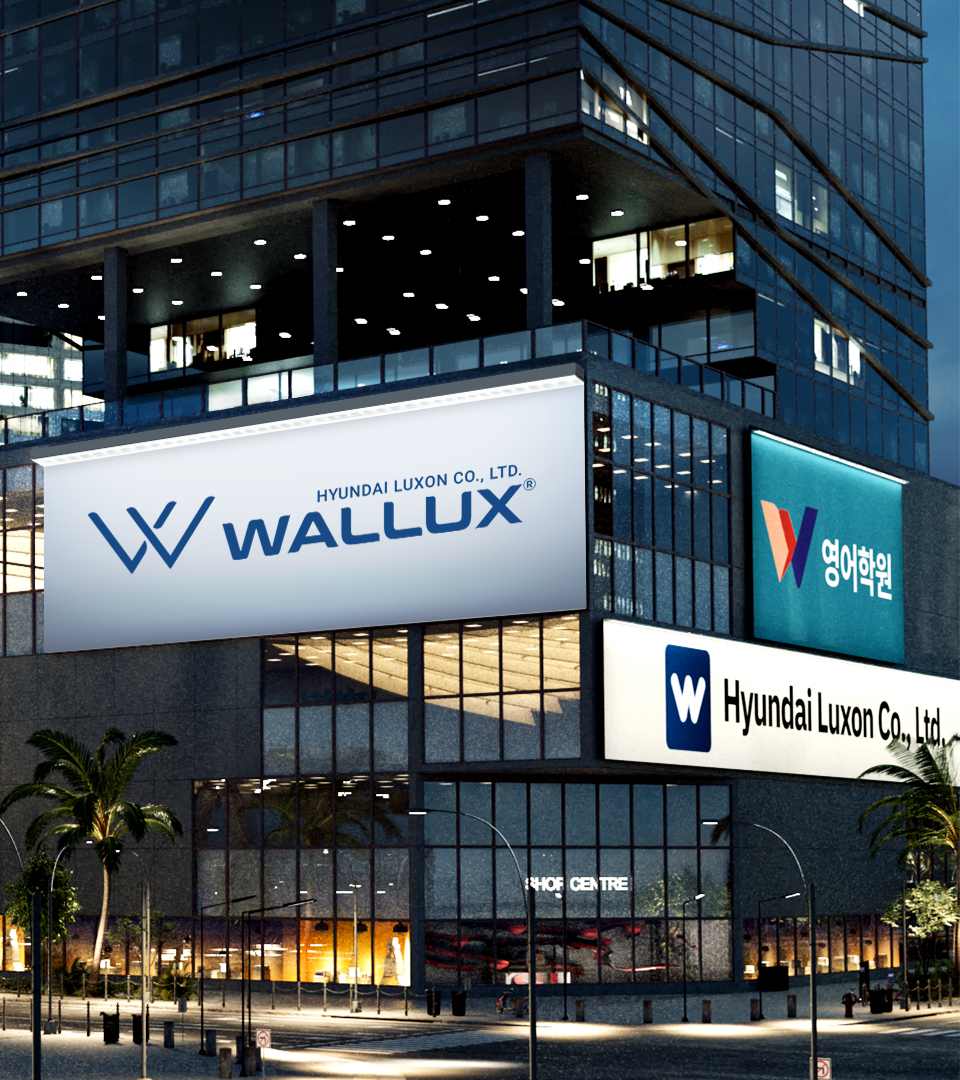

Product Comparison
Features
Compared to conventional spotlights, Wallux is designed with minimal protrusion from walls or sign surfaces. This ensures uniform illuminance without dark spots, making a new concept of LED lighting.
Wallux features a unique light distribution design that evenly spreads light in all directions. Even when multiple units are installed in series, it eliminates the shadowing and delivers uniform illumination across the surface.
By combining high-power LEDs and special optical lenses, Wallux's technology delivers high performance with significantly reduced power consumption. It is an ultra-low-power LED lighting designed for energy-efficient operation.
Wallux is designed for simple, single-person installation. Its user-friendly structure reduces installation time and labor costs for efficiency.
